Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy ensures long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your 10 speed transmission running longer, healthier, and cooler with PPE.
Note: not compatible with F-150 3.5L Hybrid PowerBoost models
OEM Part Number for Reference: Ford HL3Z7A194C
May be subject to a short lead time based on color availability.

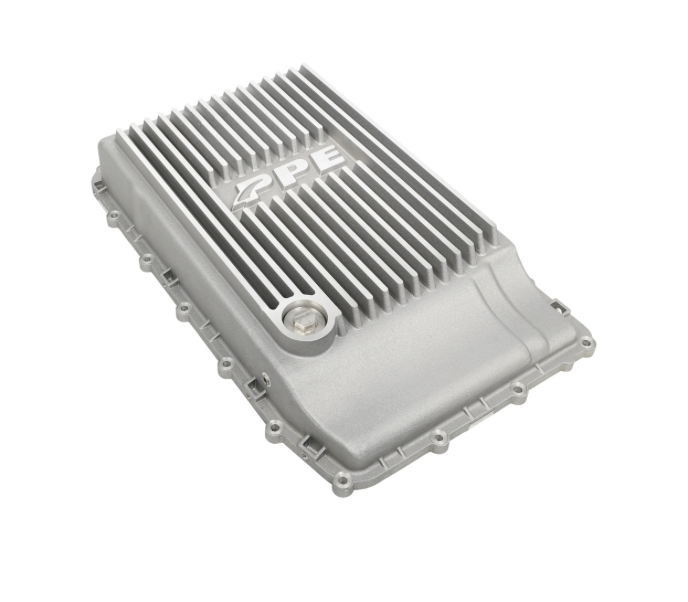

2017-2025 FORD 10R60/10R80 HEAVY-DUTY CAST ALUMINUM TRANSMISSION PAN - STANDARD
Features
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
- Cast-in gussets for additional transmission housing flange support and increased rigidity
- 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
- Equipped with a 1/8-inch NPT port with pre-installed NPT plug
- Compatible with OEM gasket and filter
